| Price: |
$2,095.00
|
 |
|
|
Details:
Our VFD does include the following:
- 120 Volt (no converting)
- 10 Feet of Shielded Power Cable
- Tuned for optimal performance
- 1/4" Collet included
- 1/8" Collet included
- 2 Wrenches for tool removal
- .0002 Runout

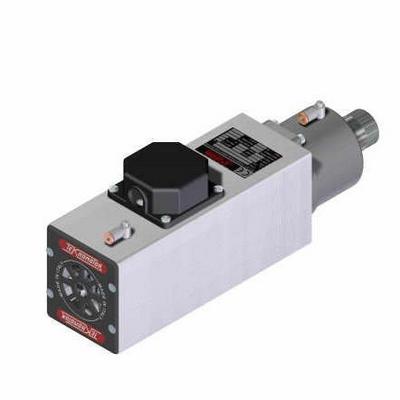

Electro spindles can have a maximum speed of 24000 rpm, further the design is for radial loads and axial loads with double angular contact bearings instead of deepgroove ball bearings in other spindles. Your receive the Spindle + Balanced Nut + Wrench along with the Drive. This is setup and ready to run on 120v.
Component features:
- Designed for radial and axial loads, heavy duty motor
- Three phase induction motor
- Squirel Caged rotor balanced to ISO 1940 norms
- Shaft driven cooling
- DB- Double angular contact bearing in spindle nose and tail
- Includes a balanced NUT and Wrench
